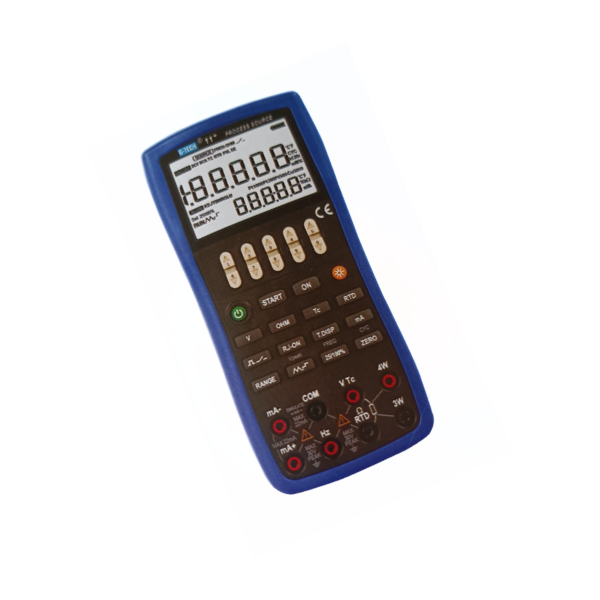

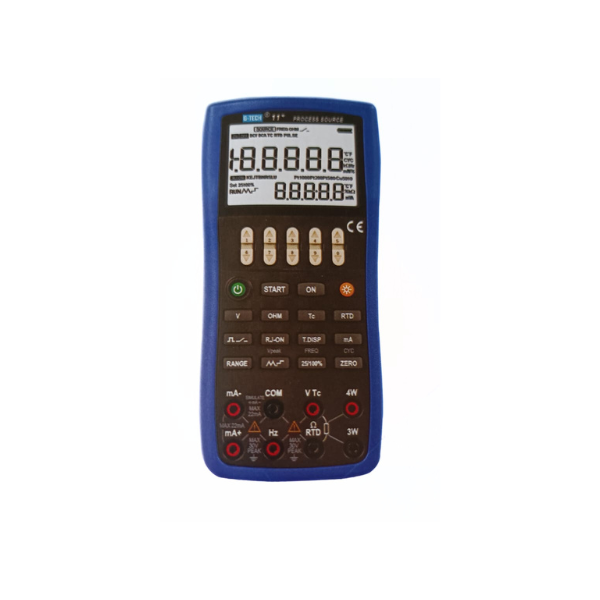

Process Signal Source G-TECH 11+ Calibrator

+ GST

SPECIFICATIONS

These specification assume A 1-year calibration cycle
An operating temperature of 18°C to 28°C (64.4°F -82.4°F)
Relative humidity of 35% to 70% (non condensing)
Accuracy is expressed as (percentage of reading+ percentage of range).

Guaranteed Safe Checkout

High Accuracy of 0.02% for source, 6 digits display for source

• Source: DC Voltage DC current, resistance, simulating transmitted temperature (thermocouple/resistance temperature detector), frequency, pulse, contact

• Provides 25% step or 100% step DC current output manually or automatically. TC source terminals and built-in lead connector of same temperature (RJ compensation with auto reference joint point): the unit can be converted between “C and “F. Outside place temperature detector with high accuracy of ±2°C

Big LCD can display the TC/RTD value and voltage/resistance value, mA value and mA% value corresponding simultaneously.

Carefully designed key layout, each pair of increase/decrease key correspond with the set value on the LCD. ⚫It can be calibrated without open the cover of the calibrator.

• White LED backlight with auto turn off and auto turn off the power, it is suitable for use on locale.
