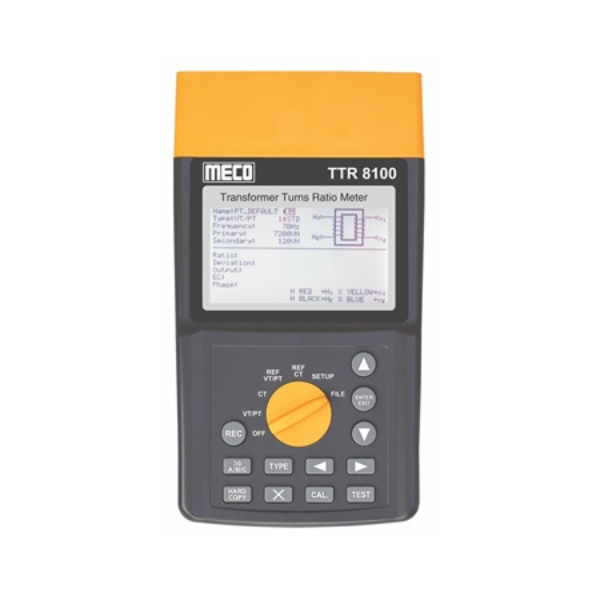

Measurement of 1 Φ and 3 Φ Transformer / VT / CT Turns Ratio
VT / PT Ratio 0.8 ~ 2000, Ct Raio 0.8 ~ 2000
Graphical and Literal Illustration of Measurements and connections with Large Back – Lighted Dot Matrix 240 x 128 LCD
Displays Turns Ratio, Deviation, Secondary Output, Excitation Voltage and Current, Phase Angle and Nameplate. Transformer VT / CT Values in one page for easy quality interpretation
Check for Live Test Points, Short Circuit, Open Circuit and Reverse Polarity before each measurement
Store 4096 Files of Transofrmer Nameplate Values (VT / PT / CT 1 Φ / 3Φ, Test Frequency, Primary and Secondary Voltages or Ratio, RCF) and Measuring Data.
Ten Test Frquencies (50 ~ 400 Hz)
9 Types of 3 Φ Winding Connection pre – installed
Wireless Blue Tooth Communication with PC
Select Filter to Remove Field noise (Slow, Normal, Fast)
Record with Date and Time Stamp
Powerful Lithium Battery (3400mAH) with built – in Charging Circuit
User Programmable RCF (Reference Correction Factor, 0.99 ~ 1.01) to Correct Accuracy within 1% Error
PC Application Software Included
Friendly File System for Easy On – Site Data Retrieval and Nameplate Values Management
