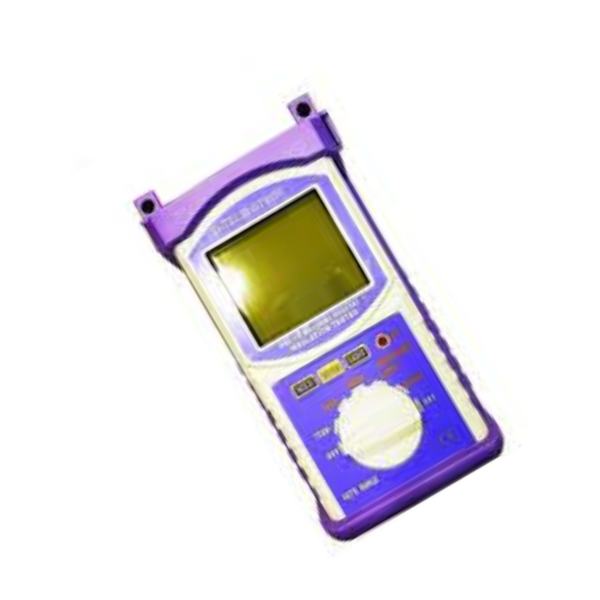

The G-Tech – Digital Insulation Tester measures the resistance in wires and motor windings. Digital Insulation Tester uses a high voltage, low current DC charge to detect current leakage and faulty or damaged insulation, which can cause arc faults, broken circuitry, and the risk of electrical shock or fire. This Insulation Tester from G-Tech can help with machine health monitoring and preventative maintenance.
Product Specifications:
Brand: G-Tech
Country of Origin: China
AC current: 20 mA-400 mA, +/-1%
AC voltage: 400 mV-4 V-40 V-400 V-700 V, +/-0.8%
Capacitance: 40 nF-400 nF-4 /F-40 /F, +/-3%
Data hold: Yes
DC current: 20 mA-400 mA, +/-1%
DC voltage: 400 mV-4 V-40 V-400 V-1000 V, +/-0.5%
Dimensions: 170x70x70 mm
Display: 3 3/4 Jumbo LCD Display, 3999 Counts
Dual Display: Yes
Frequency: 40-400-4k-40k-4M Hz
Model: GT-9550
Overload Protection: Yes
Power Supply: 1.5 Vx 6A Battery
Resistance: 400-40k-400k-4M-40M ohm, +/-0.8%
Test Insulation: Resistance at 500 V/1000 V/2500 V with a range of 0.25 m? -4 G?
Weight: 950 grams
Key Features:
Fast and accurate readings
Energy efficient
Compact and lightweight
